Fixture

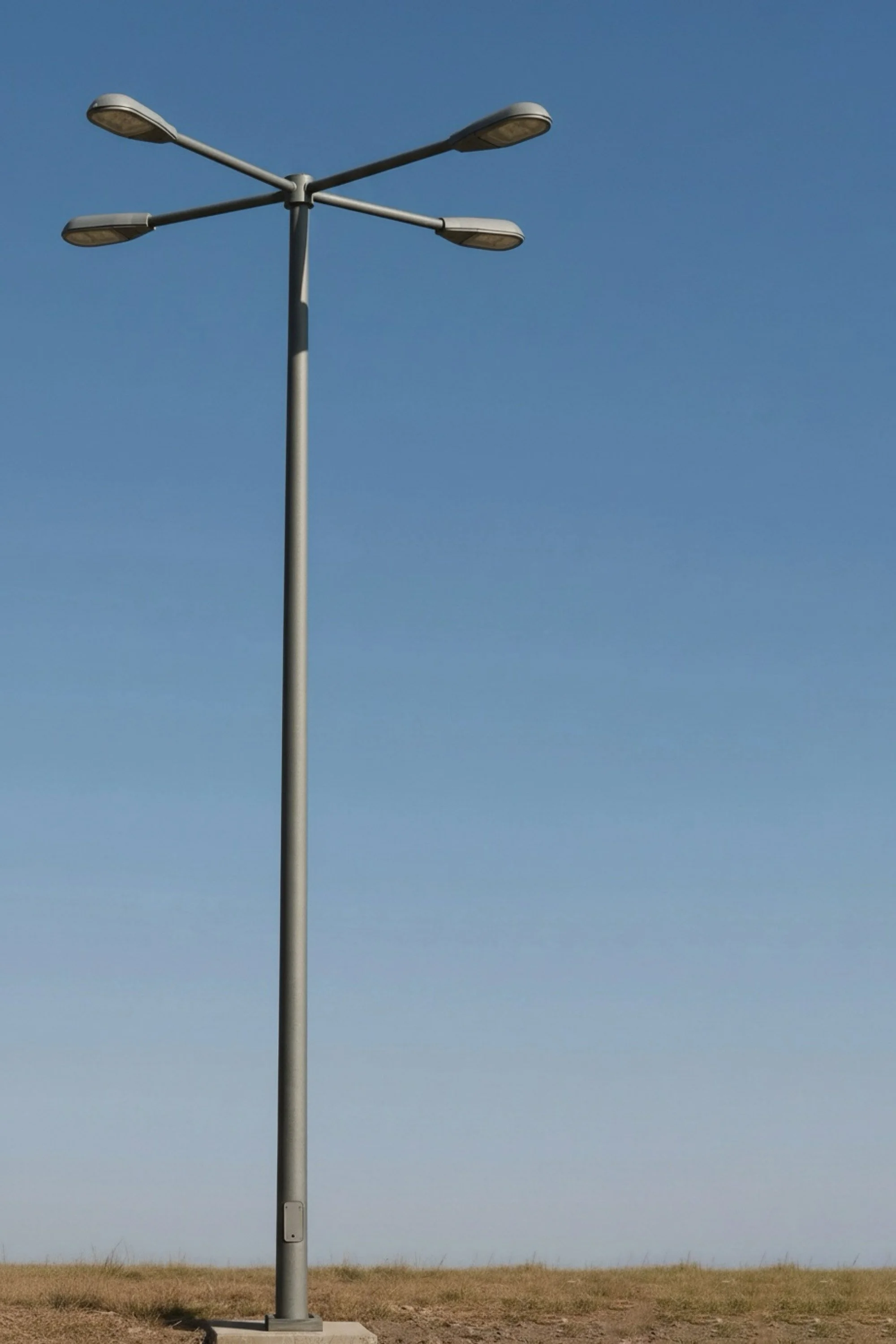

Tapered Post • Double Bullhorn • Triple Bullhorn • Quad Bullhorn‍ ‍

Details
We manufacture Aluminum poles from new aluminum 6061 or 6063 T6 alloy, heat treated after fabrication with seamless welding. Optional base covers are available along with multiple luminaries mountings. The removable wire way pole cover is secured with stainless steel bolts.

All poles are engineered and EPA compliant with current AASHTO specifications and wind load conditions. Special pole sizes can be developed to meet project requirements.

Tapered Post • Bullhorn • Spoke

Details
We typically manufacture Steel poles using 11 or 7 gauge steel depending upon project load requirements. Each pole is fabricated from rolled or formed welded steel tubing of one-piece construction and has a full length longitudinal weld.

Each pole is equipped with a reinforced handhole and locking cover plate. An electrical grounding lug is provided inside ofthe handhole. Multiple luminarie tenons or mountings are available that can match specified fixture company mounting requirements.

Pole
ASTM A595 Grade A steel, minimum 55 ksi.

Base Plates
Plasma cut to required size, minimum 36 ksi, circumferentially welded top and bottom to the pole shaft meeting A WS specifications.

Anchor Bolts
Fabricated from hot rolled carbon steel, minimum 55 ksi, fully galvanized with double nuts and washers.
